Flood Alarm Device
Flood Alarm Device
DIN rail mounting; One-button mute, automatic reset, RS485 for remote alarm & control....
DETAIL

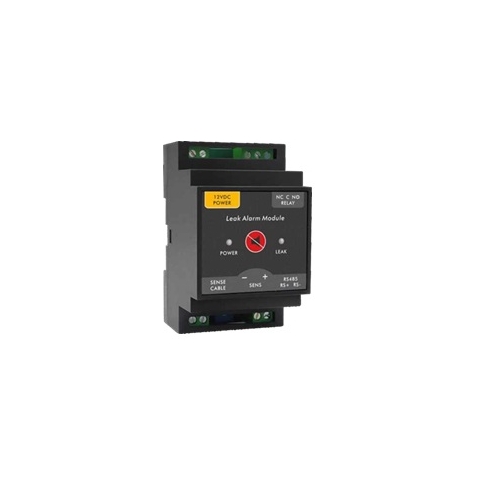

  • Multi-functional Detection: This device is a versatile leak detection system that connects to sensing cables. Its compact size allows for easy installation on DIN 35mm rails or inside electrical control boxes.

  • Integrated Remote Monitoring: It can integrate with various monitoring systems via relay contact signals and RS485 communication, enabling remote alarming and equipment control.

  • High Sensitivity & False Alarm Prevention: Equipped with high-sensitivity components, the internal system ensures prompt detection while avoiding false alarms caused by external factors. It also features unique surge protection.

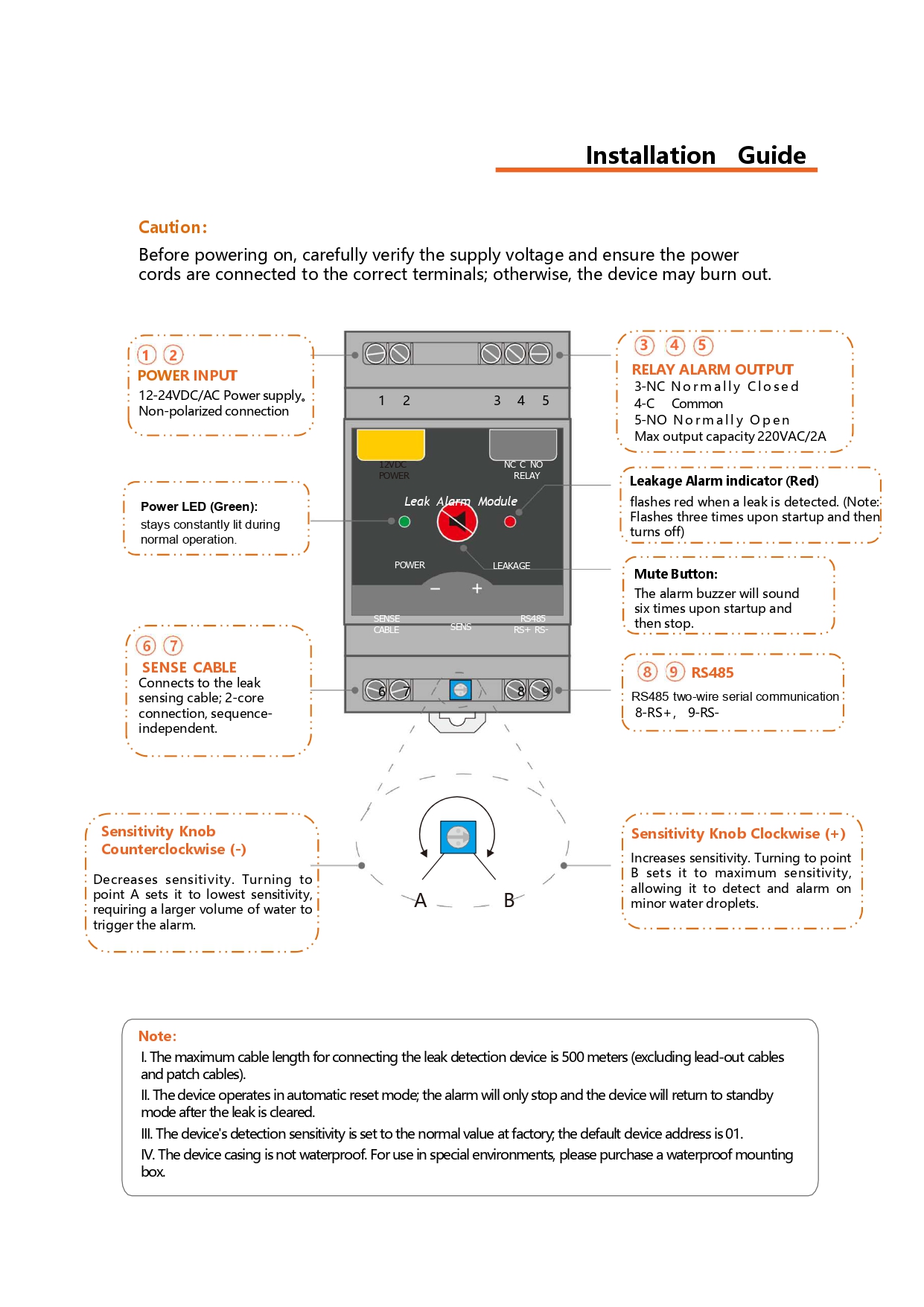

  • Convenient Operation: All installations and operations can be easily completed without opening the enclosure. It features adjustable detection sensitivity, a one-touch alarm mute button, and a buzzer configuration switch.

  • Automatic Reset: The device operates on an auto-reset mode once the leakage is cleared. The alarm indicator, buzzer, and relay output will automatically reset and return to standby mode.

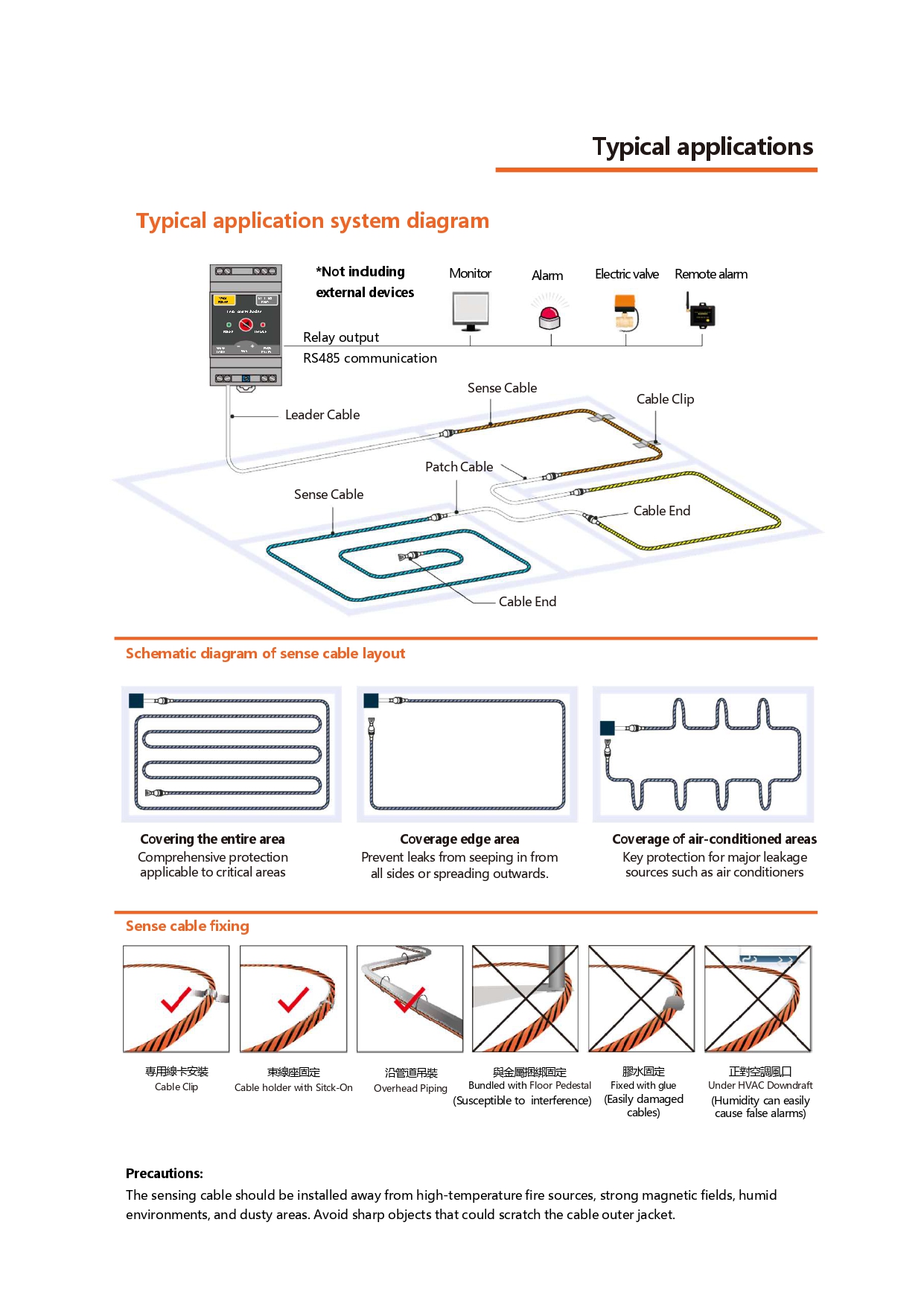

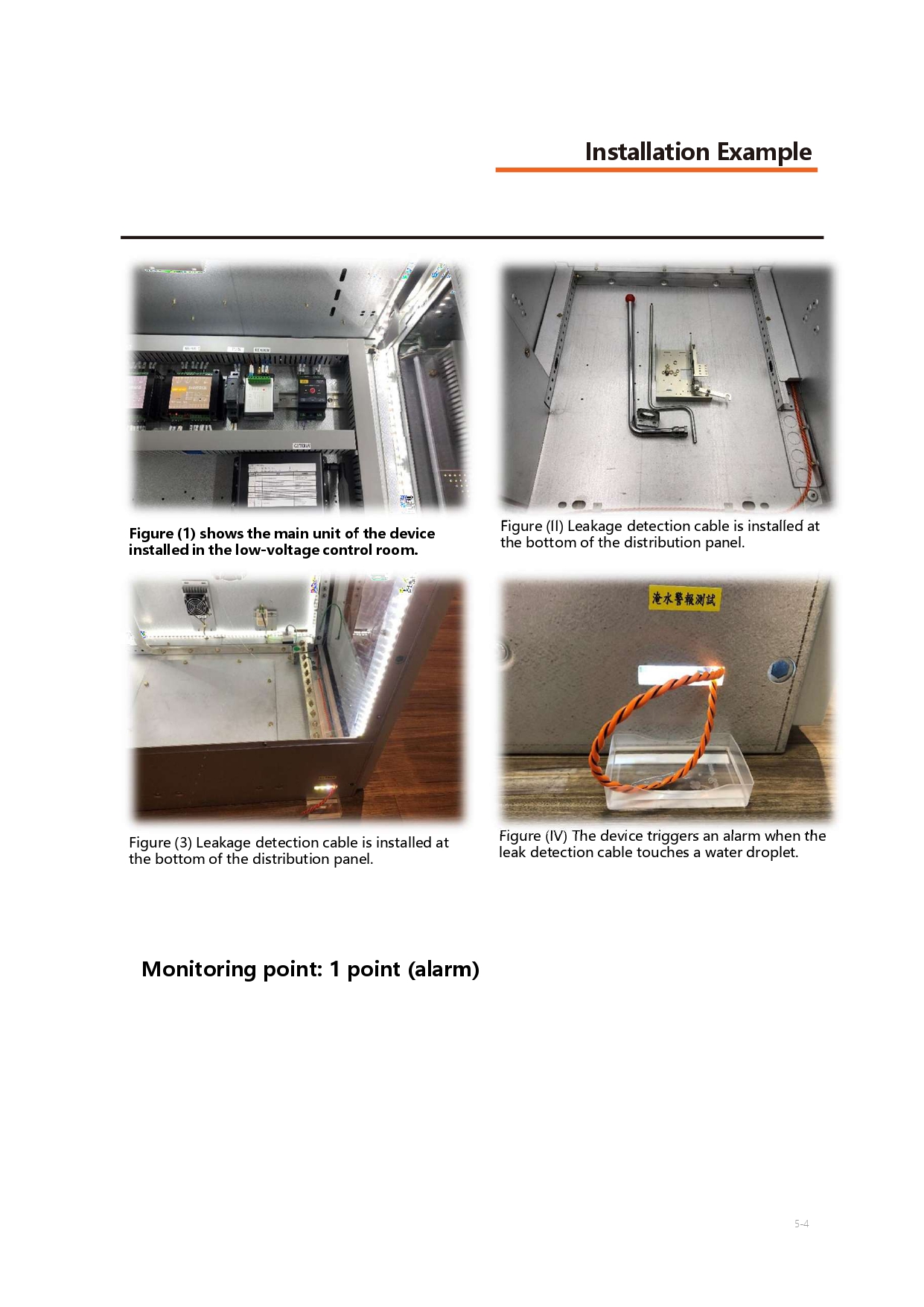

  • Versatile Applications: In addition to switchboards, it is suitable for air conditioning units, computer server rooms, liquid containers, pump tanks, and other locations requiring leak monitoring.

    ⚙️ Technical Specifications

    Sensing Cable Length Standard length: 7 meters (customizable lengths available); Maximum connectable length: 500 meters (excluding leader and jumper cables).
    Leader Cable Length Standard length: 5 meters (customizable lengths available).
    Plastic Enclosure Black flame-retardant ABS, DIN 35mm rail mount (Note: The enclosure is not waterproof; purchase a waterproof box for special environments).
    Dimensions & Weight Dimensions: L86 * W58 * H52 mm /  Weight: 100g.
    Detection Sensitivity 0–10K stepless adjustment; Response time < 1 second (at maximum sensitivity).
    Power Requirements 12–24VDC/AC power supply; Standby current: 70mA; Alarm current: 120mA.
    Relay Output 1 SPDT Form C (NO/NC) output; Maximum output capacity: 60VDC/2A or 220VAC/2A.
    RS485 Output RS+, RS- two-wire communication interface; Device address: 1–255 (Factory default: 01).
    Product Certification Detection module approved by CE and CAS, suitable for non-hazardous areas.
